We do  Reverse osmosis Plants, Sewage Treatment​ Plants, MEP Work, Chemicals Solutions, Swimming Pools

Products

Reverse Osmosis

Technology Boulevard GT Sdn Bhd trading is one of the largest manufactures for various types of Reverse Osmosis Plants like Brackish Water Treatment plant, sea water desalination treatment plant, TSE water polishing plant.

Technology Boulevard GT Sdn Bhd is a specialized company in outdoor and indoor containerized and noncontainerized RO plants that provides information, technical assistance and market research over products and/or markets for business clients or special projects.

Our actual and wide extensive international network of specialists in RO provides the technical support, quality and alternative solution for our clients.

Brakish Water RO

Brackish Water Reverse Osmosis (BWRO) Systems


Hitachi Aqua-Tech Standardised RO Desalination Systems are high quality, reliable and energy efficient.

Overview

Brackish water has moderate levels of dissolved minerals and salts. The presence of these impurities makes the water less desirable or unusable for many applications.
Hitachi Aqua-Tech's brackish water RO systems are designed with efficiency and ease of operation in mind. Our sysems produce water to meet the most demanding specifications and different capacities are available to suit specific requirements.
We also fabricate containerised BWRO Systems. Our systems are built into brand new 20- and 40-foot containers that meet international quality standards. They arrive at your facility ready to operate with pre- and post-treatment systems, pumps, piping and controls.
Our containerised water treatment systems offer reliability and robustness to meet the operational requirements of cogeneration plants, municipalities, the shipbuilding industry, electronic plants, resorts, and others.

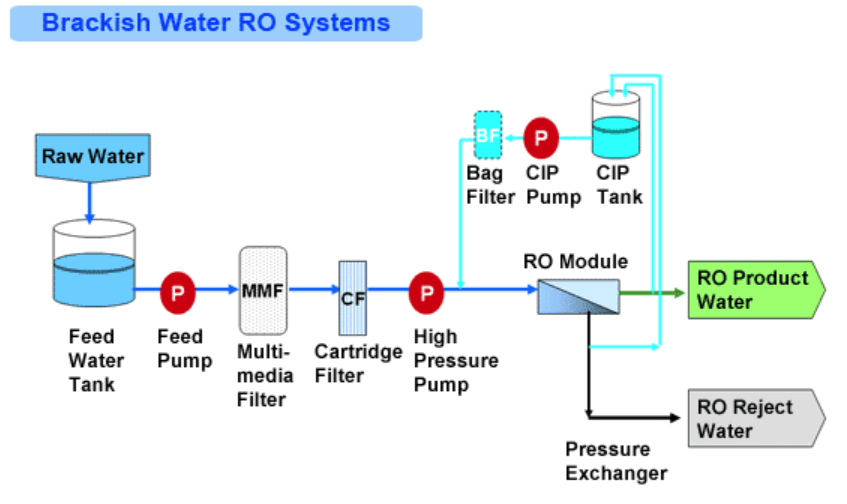

Process Diagrams

Standard Features

Depending on the feed water quality, BWRO System usually requires some pre-treatment systems such as

  • Sedimentation
  • Coagulation and flocculation
  • Feed pump
  • Multimedia filter
  • Chemical dosing system

The major components in the Brackish Water RO System include:

  • Cartridge / bag filter
  • Pressure vessels with spiral wound membrane elements
  • High pressure pump
  • Control and instrumentation with fail-safe devices

Sea Water RO

Sea Water Reverse Osmosis (SWRO)


MAK Water’s Sea Water Reverse Osmosis (SWRO) plants are designed to treat sea water, or high salinity ground water, with < 40,000 mg/L of dissolved solids (TDS) and < 30 mg/L of suspended solids (TSS), to achieve potable water quality. The standard treatment process involves pre filtration (auto backwashing multimedia filters and cartridge filters), anti-scalant dosing to prevent membrane scaling, RO desalination and auto flushing and CIP systems for membrane cleaning. Additional pre-RO and post-RO treatment steps may be added as required to suit feed water conditions and/or treated water quality requirements. The MAK SWRO plants are available as skid mounted or containerised systems.
The standard treatment process involves pre filtration (auto-backwashing multimedia filters and cartridge filters), anti-scalant dosing to prevent membrane scaling, RO desalination and auto flushing and CIP systems for membrane cleaning. Additional pre-RO and post-RO treatment steps may be added as required to suit feed water conditions and/or treated water quality requirements.
The MAK SWRO plants are available as skid mounted or containerised systems.



Process Steps

TSE Water Polishing

Sewage Treatment​

A Moving Bed Biofilm Reactor (MBBR) requires less space than traditional wastewater treatment systems.

The technology uses polyethylene biofilm elements operating in an aerated wastewater regime. Each individual biofilm element has a high protected surface area to support the growth of heterotrophic and autotrophic bacteria.

This results in a highrate biodegradation within the system, which also results in process reliability and ease of operation.

The process is self-sustaining as the biofilm attaches to the element modulates of the incoming load fluctuation. The attached growth provides a more dense microbial population per unit volume (compared to suspended growth), resulting in compactness, lower power consumption, minimal maintenance and capacity enhancement.

MBR Plant

Membrane BioReactor (MBR)

MBR system uses an advanced treatment technology that produces high quality reuse water at a competitive cost. It can be utilised on small and medium sized plants; ideal as a solution for customers looking to save space.
Membrane Bioreactor (MBR) is a process that combines a membrane ultra / micro filtration process and activated sludge process. (The MBR process is used in place of the secondary sedimentation tank and sand filter used for tertiary treatment in the conventional activated sludge process.) Hitachi Aqua-Tech Membrane Sewage Treatment Plant provides features such as space saving, easy operation and high quality treated water which is reusable. In addition, advanced treatment of nitrogen and phosphorus removal can be achieved by anoxic / aerobic treatment. According to customer requirements and site conditions,

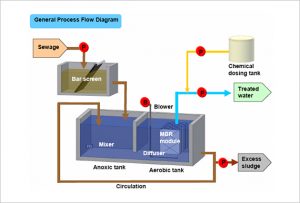

Process Diagrams

In the MBR process, raw sewage from equalisation or holding tank first passes through fine screens to remove substances that may clog or scratch the membrane before going into the MBR facilities.

MBBR Plant

Moving Bed Bioreactor (MBBR)


A Moving Bed Biofilm Reactor (MBBR)
requires less space than traditional wastewater treatment systems. The technology uses polyethylene biofilm elements operating in an aerated wastewater regime. Each individual biofilm element has a high protected surface area to support the growth of heterotrophic and autotrophic bacteria. This results in a highrate biodegradation within the system, which also results in process reliability and ease of operation.

The process is self-sustaining as the biofilm attaches to the element modulates of the incoming load fluctuation. The attached growth provides a more dense microbial population per unit volume (compared to suspended growth), resulting in compactness, lower power consumption, minimal maintenance and capacity enhancement.



Benefits of MBBR Technology


• Saving of space due to its compactness
• Easy to maintain
• Good for a high volume of load
• Extension and expanding are easy. This made possible by increasing the filling degree of carriers.
• Lower discharge costs
• MBBR is not affected by toxic shock
• Independent process performance because there is no return line for sludge; the MBBR eliminates the return activated sludge (RAS)
• It has high effectiveness of sludge retention time (SRT) which enhances the nitrification process
• Production of sludge is lower
• It does not need recycling of the sludge-like activated sludge system
• MBBR media is installed to retrofit existing activated sludge tanks in order to increase its capacity



SBR Plant

SBR Plant

SBR Plant: Sequential Batch Reactor and upgraded version of conventional activated sludge system. As the name states itself, in this type of sewage water treatment technology, treatment is done in batches. A typical SBR Treatment Plant consists of several tanks linked in sequence and follows time-oriented batch process. In such system, processes such as equalization, aeration and sedimentation are done in timely manner, for this overall system is fitted with level sensors and timing device or microprocessor-based system.





Technology Boulevard GT Sdn Bhd has been engaged into design, supply, construction, and installation and commissioning of sewage treatment plants

Our company is capable to design any capacity of required sewage treatment plant complete in all respects with panel board room and all contingent mechanical and electrical, piping and instrumentation works including operation and maintenance. We carefully design required STP using energy efficient technologies and handover the plant after running successful trial operations. We can easily serve you with 10 KLD to 1000 KLD plants.

Extended Aeration

MEP Work

GRP PANEL TANKS are an ideal way to store water.

The panel tank is a modular system, which then enables a tank of any desired size to be assembled and constructed. These tanks are generally offered as insulated or Non-Insulated.

Tanks can be installed at the ground level, basements, roofs or inside buildings as well.

Typical applications include residential/office buildings, hotels, hospitals private homes as well as other building complexes.

There are numerous advantages of using GRP Panel Tanks.

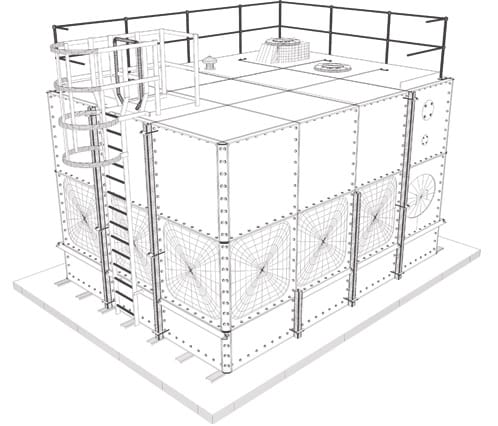

GRP Tank

GRP water tank (also known as Fiberglass Reinforced Water Tank) is also called SMC storage water tank, FRP water storage tank, SMC panel tanks, FRP panel tank, GRP panel tank, GRP sectional water tank, GRP panel tank etc.
It consists mainly of fiberglass and resin called Sheet Molding Compound” -- a fiber-reinforced material that consists of a thermosetting resin glass fiber. It is hydraulically hot pressed into panels of varying sizes and thicknesses depending on the customer's needs. We provide regular grp sectional water tanks, such as 1m3 smc water tank. Normal grp water tanks panels is 1m*1m.
These panels are then used to assemble the panel water tank by connecting them to each other via the steel skeleton and rubber gaskets in between each panel.





Mechanical Work

Electrical Work

Chemicals​

Designed for use with commercial and industrial membrane water treatment systems

Antiscalant

Antiscalant is designed for use with commercial and industrial membrane water treatment systems.



Advantages

• A broad spectrum antiscalant designed to inhibit inorganic scale formation in membrane separation processes
• Inhibits calcium carbonate scale up to Calcium Carbonate Nucleation Index (CCNI) of 2.2
• Effectively inhibits formation of calcium sulfate, calcium fluoride, barium sulfate, strontium sulfate and silica
• Stabilizes metal ions to prevent metal oxides precipitation and disperses existing metal oxides/hydroxides, silt and clay particles
• Approved for use by all major membrane manufacturers
• Environmentally compatible, especially where discharge of waste into the environment is a concern


Ordering Information

5 Gallons (19 Liters) Bucket (25 kg)
55 Gallons (208 Liters) Drum (225 kg)

SMBS

Sodium Metabisulfite (SMBS)

odium metabisulphite is marketed under the brand ASA IMPEX (ASA).
SMBS is used as a preservative in the starch and food industry to control melanosis (black spot) in shrimp; for fermentation in the industry; as an antichlor in the chemical industry and as a redox catalyst in the acrylic fibre industry.
The product is also used as a reducing agent in the purification of aldehydes and ketones; in the manufacture of sulphonated oil and resin; for detoxification of cyanide in gold ore processing plants and in the manufacture of photographic chemicals.
Sodium metabisulphite is manufactured by ASA IMPEX (India).

Soduim hypochlorite

Sodium Hypochlorite

Sodium hypochlorite 12% solution
Professional manufactuer
SGS, CIQ BV certificate
Water treatment

Sodium hypochlorite solution 12%

Appearance: Light yellow liquid, corrosive, oxidizing and alkaline. Exposure to chlorine released in the air, love thermal decomposition


Applications:

The product can be widely used as disinfectant, bleaching agent or Oxidant resulting from the available chlorine in the product, for example, it Has a wonderful disinfection for swimming-pool, drinking water, cooling tower &sewage and waste water, food, and farming, Hospital, school, station and Household etc., good bleaching and oxidation are also found in paper and dye Industry.dye Industry.



Polyelectrolyte

Swimming Pools
